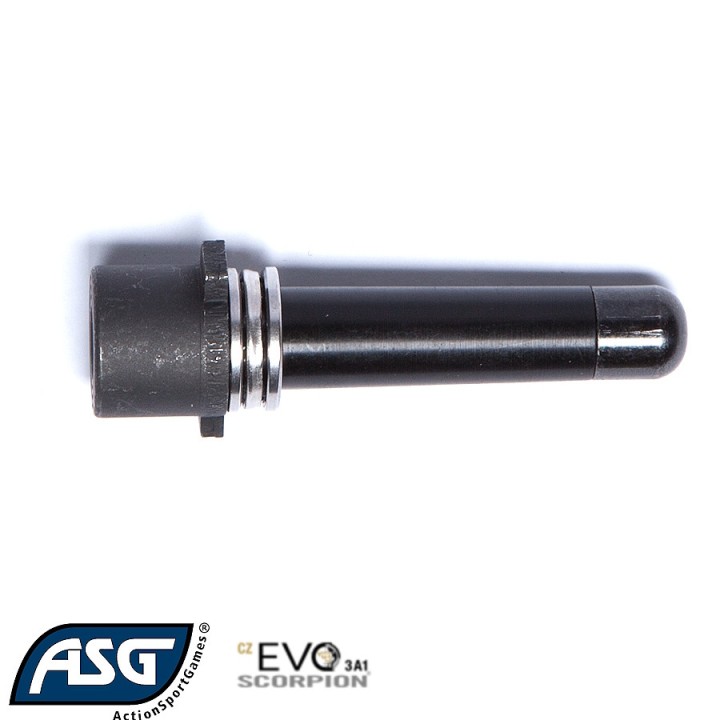

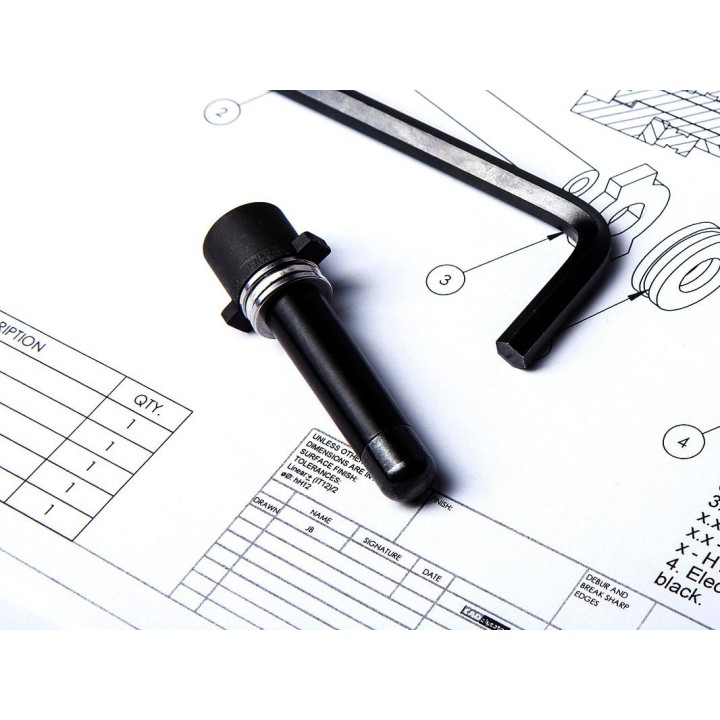

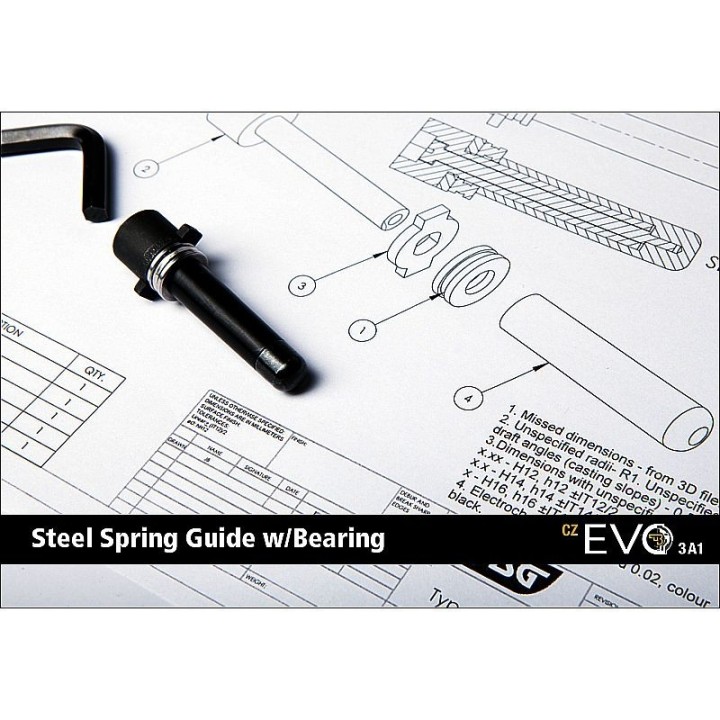

Steel Spring Guide w/Bearing, Scorpion EVO 3 - A1 18163 Reinforced spring guide

ASG Scorpion EVO 3 A1 reinforced spring guide

Reinforced spring guide with bearing for CZ Scorpion EVO 3 A1, part no. ASG 18163.

Original replacement part to extend spring life and improve rate of fire.

A simple, reliable solution for reinforcing the gearbox of your Scorpion EVO 3 - A1.

ASG steel spring guide specifications

• Brand : ASG
• Product type: Spare part / Upgrade
• Part number: 18163
• Name: Steel Spring Guide w/Bearing, Scorpion EVO 3 - A1 / Guide ressort en acier avec roulement pour Scorpion EVO 3 - A1
• EAN : 5707843060820
• Color: Black
• Core material: high-strength steel / high-tensile steel
• Outer sleeve material: POM polymer (nylon) with free rotary motion
• Bearing type: Integrated ball bearing (pressure bearing)
• For replica type: Airsoft AEG (electric)
• Compatible spring range: M90 to M190 and more
• Function: Guide and centering of spring in gearbox
• Weight: approx. 20-25 g (standard estimate for a steel spring guide of this type)
• Manufacturing location: Denmark / Europe (original ASG product)

Advantages of spring guide with bearing

Reinforced with high-strength steel: The steel core easily supports heavy-duty springs (M90 to M190 and above). This prevents deformation or breakage, even under heavy upgrades.

Integrated ball bearing: The bearing allows the spring to rotate freely during firing. This reduces parasitic tension on the spring and limits internal heat.

Increased spring life: Precise guidance and bearing reduce wear and progressive stalling. Less unnecessary rebound and less loss of power over time.

Extended compatibility: Supports M90 to M190 springs, ideal for standard and moderate builds. Can also be used with higher springs, for occasional use.

Improved Rate of Fire (ROF): Smoother guidance reduces mechanical resistance in the gearbox. Result: a higher, more stable rate of fire (ROF), especially with Lipo.

Slightly increased muzzle velocity: Reduced friction and more constant spring compression improve efficiency. A slight increase in FPS is generally observed, especially with highly-tensioned springs.

Reduced mechanical friction: The POM outer sleeve rotates freely around the metal core. This limits heat in the gearbox and reduces the load on the motor and pinions.

Reduced energy consumption: Less friction means less strain on the motor and battery. This translates into more shots per load and longer motor life.

Easy installation, without opening the gearbox: The EVO 3 A1 spring guide can be installed without completely dismantling the gearbox. Simply loosen the retaining screw, change the spring and guide, then reassemble.

Compatibility Scorpion EVO 3 A1 spring guide

• ASG CZ Scorpion EVO 3 - A1 (reference ASG 17831)
• Compatible only with Scorpion EVO 3 A1 gearbox (specific shape and location).

To maximize the life of your Scorpion EVO 3 A1, replace the original spring guide with this reinforced model with bearing.

ASG EVO 3 spring guide

"Ultra-simple but highly effective tuning part for the Scorpion EVO 3 A1.

The steel guide with bearing preserves the spring and finely improves cadence and stability.

A must for anyone fitting an M110 or higher spring, or wanting a more reliable EVO 3 for the long term."
