SIG SAUER SP2022 CO2 cartridge drilling gasket - Yellow gasket R405 - 280302

Name: SIG SAUER SP2022 CO2 cartridge drilling gasket - Yellow gasket R405 - 280302
Brand: KWC / Cybergun
SKU: J-E7A0-2089110149593-
Price: 3.15 EUR
Availability: InStock

€3.15

Tax included

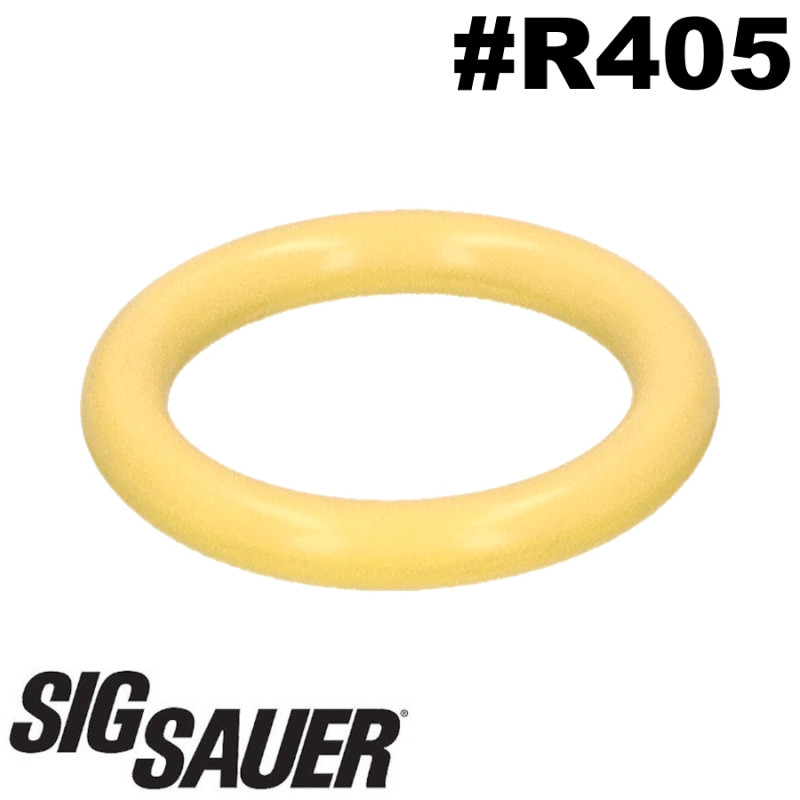

The yellow R405 gasket seals the SP2022 airsoft CO2 magazine.

It effectively limits leakage when drilling the CO2 cartridge.

Description
Product Details

SP2022 280.302 Yellow gasket

The seal most responsible for magazine leakage

Compatible with the following SIG SAUER CO2 magazines:

Replica airsoft SIG SAUER SP2022 Co2 Polymer cylinder head (KWC)
Replica Sig Sauer SP2022 CO2 - Airsoft Pistol Metal Breech (KWC)
Sig Sauer SP2022 CO2 Non-Blowback airsoft pistol (CYBERGUN/SWISS ARMS reference: 280301)
Sig sauer gsr 1911 co2 full metal (CYBERGUN 280302)

Exploded view of CO2 magazine for SIG SAUER :

[ Top of Magazine ]

│

├── Loader lips (plastic, holds pellets)

├── Gas outlet (the hole on top of the loader)

└── Percussion valve (rear)

└── Valve gasket (thin orange gasket, Part No. R406)

[ Charger center: Cartridge well ]

│

├── Upper sealing screw / Valve housing

├── Drilling needle (hollow)

├── CO2 cartridge drilling gasket (thick yellow gasket, Order No. R405)

[ Charger bottom ]

│

├── Spring and ball lifter

└── Lower clamping screw (Alen key for cartridge drilling)

The two seals responsible for gas leaks in the SP2022:

The thin but larger-diameter orange gasket: Reference R406

What it does: It's the O-ring that seals the outside of the firing valve.

Position: It is placed around the thread of the B402 valve cap (on the right of the diagram). It prevents CO2 escaping through the threads when the valve is screwed into the magazine body.

The thicker but smaller yellow gasket: Reference R405

What it does: It's the drilling gasket for the CO2 cartridge (made of rigid polyurethane).

Location: Just above the B06 drilling block, at the very bottom of the magazine well. It surrounds the needle to crush the cartridge neck and prevent direct leakage when you strike it. It is accompanied by the small U01 bronze filter.

How to diagnose the problem using visual and auditory symptoms :

It's very easy to tell which gasket is faulty, because the sound and location of the leak immediately point to the culprit.

The piercing seal (thick yellow - R405)

This is the gasket that wears out fastest on CO2 chargers.

The direct symptom: As soon as you start to screw in the CO2 cartridge with the Allen key, you'll hear a loud, continuous hissing sound ("Pssssssss") escaping directly from the cartridge well (the large central opening).
The visual symptom: Sometimes, if the leak is very strong, white gel (due to the intense cold of the CO2) forms on the inside walls of the cartridge well.
The appearance of the defective gasket: If you look closely (or after disassembly), it is marked by a deep circular indentation, crushed, split or torn at the edges due to overtightening.

The percussion valve gasket (Orange fine - R406)

This gasket keeps the gas inside the firing mechanism.

The direct symptom: The cartridge pierces properly without noise in the center, but a slight hiss escapes from the rear of the magazine, just where the hammer of the replica hits the valve to fire.
Secondary symptom: Gas can also escape directly from the top of the magazine (the black bead exit seal) without you pulling the trigger.
The appearance of the defective seal: It's often dry, flattened (it's lost its well-rounded bead shape), or has micro-cuts caused by friction when the valve is screwed on.
