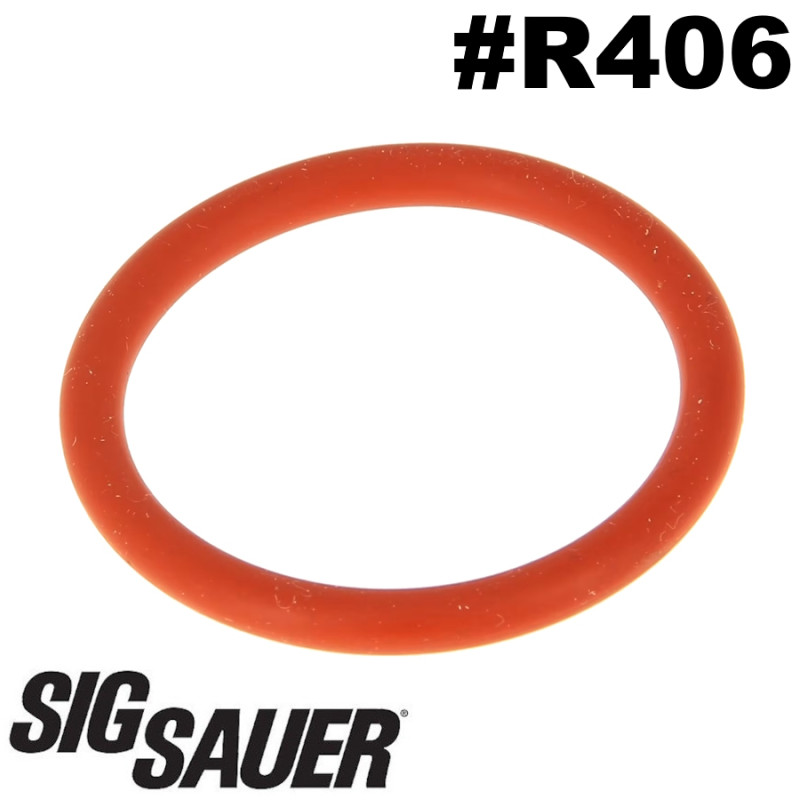

SIG SAUER SP2022 Valve gasket - color Orange R406 - 280.302

Name: SIG SAUER SP2022 Valve gasket - color Orange R406 - 280.302
Brand: KWC / Cybergun
SKU: J-E7A0-2089110149609-
Price: 3.25 EUR
Availability: InStock

€3.25

Tax included

This orange R406 valve gasket is the ideal replacement part for resolving gas leaks at the rear of your CO2 magazine.

It ensures a perfect seal on Sig Sauer SP2022 models from KWC or Cybergun.

Description
Product Details

Sig Sauer SP2022 valve gasket compatibility

Replica airsoft SIG SAUER SP2022 Co2 Polymer cylinder head (KWC)
Sig Sauer SP2022 CO2 Replica - Airsoft Pistol Metal Breech (KWC)
Sig Sauer SP2022 CO2 Non-Blowback airsoft pistol (CYBERGUN/SWISS ARMS reference: 280301)
Sig sauer gsr 1911 co2 full metal (CYBERGUN 280302)

Diagram and exploded view of SIG SAUER CO2 magazine :

[ Top of Magazine ]

│

├── Loader lips (plastic, holds pellets)

├── Gas outlet (the hole on top of the loader)

└── Percussion valve (rear)

└── Valve gasket (thin orange gasket, Order No. R406)

│

[ Charger center: Cartridge well ]

│

├── Upper sealing screw / Valve housing

├── Drilling needle (hollow)

├── CO2 cartridge drilling gasket (thick yellow gasket, Order No. R405)

│

[ Charger bottom ]

│

├── Spring and ball lifter

└── Lower clamping screw (Alen key for cartridge drilling)

O-rings responsible for CO2 leaks:

The thin but larger-diameter orange gasket: Reference R406

What it does: It's the external sealing O-ring for the firing valve.

Position: It is placed around the thread of the B402 valve cap (on the right of the diagram). It prevents CO2 escaping through the threads when the valve is screwed into the magazine body.

The thicker but smaller yellow gasket: Reference R405

What it does: It's the CO2 cartridge drilling gasket (made of rigid polyurethane).

Location: Just above the B06 drilling block, at the very bottom of the magazine well. It surrounds the needle to crush the cartridge neck and prevent direct leakage when you strike it. It is accompanied by the small U01 bronze filter.

Diagnosing a leak on your airsoft magazine:

It's very easy to tell which gasket is defective, because the noise and location of the leak immediately tell you the culprit.

Symptoms of R405 bore seal wear

This is the fastest-wearing gasket on CO2 chargers.

The direct symptom: As soon as you start to screw in the CO2 cartridge with the Allen key, you'll hear a loud, continuous hissing sound ("Pssssssss") escaping directly from the cartridge well (the large central opening).
The visual symptom: Sometimes, if the leak is very strong, white gel (due to the intense cold of the CO2) forms on the inside walls of the cartridge well.
The appearance of the defective seal: If you look closely at it (or after disassembly), it is marked by a very deep circular indentation, or is crushed, split or torn at the edges due to overtightening.

Wear symptoms of the R406 valve gasket (Orange fine)

This gasket serves to keep the gas confined inside the firing mechanism.

The direct symptom: The cartridge pierces properly without noise in the center, but a slight hiss escapes from the rear of the magazine, just where the hammer of the replica hits the valve to fire.
Secondary symptom: Gas can also escape directly from the top of the magazine (the black bead exit seal) without you pulling the trigger.
The appearance of the defective seal: It is often dry, flattened (it has lost its well-rounded bead shape), or shows micro-cuts due to friction when screwing in the valve.
